MBE PARTS

We supply many other parts and accessories for all MBE systems. We fabricate: Sample Holders, Electronic Racks, Thermocouples, Crucibles, Power and temperature connectors, and MBE Accessories.

A map of the united states with a red star in the middle

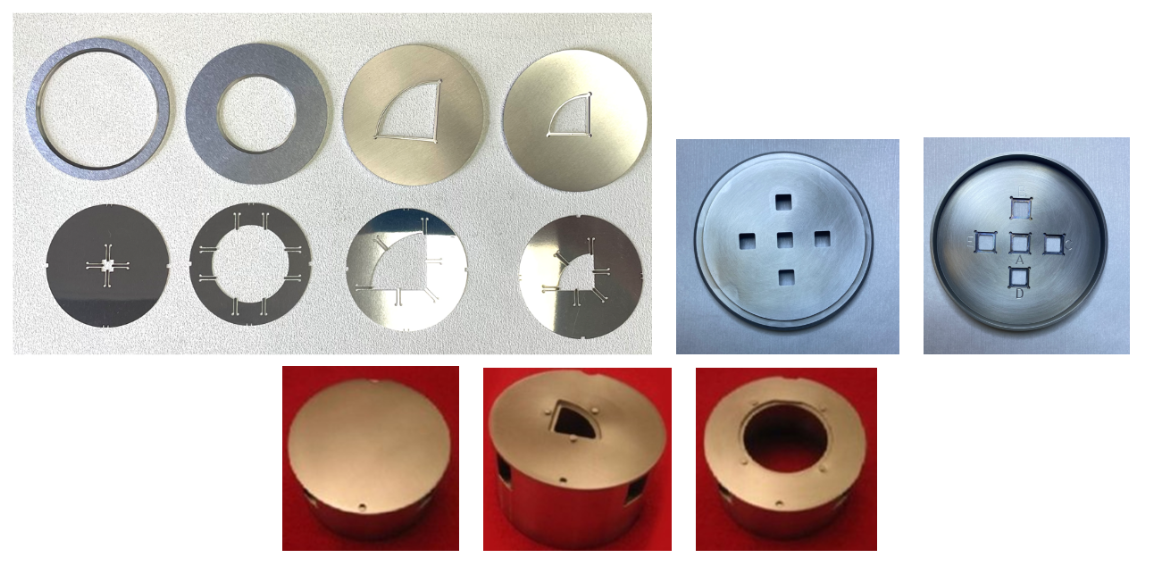

Sample holders are designed and fabricated compatible with all MBE machines and growth environment (oxide, nitride, arsenide, etc.), in various sizes and profiles.


Specifications:

  1. From 2”- 8” wafers
  2. Different materials (Molybdenum, and Haynes 230)
  3. Quarter wafers, and  5 mm and 10 mm squares
  4. Compatible with all MBE systems
  5. Strain-free epi-layers
  6. Easy & secure mounting
  7. Fast loading process
  8. Competitive prices

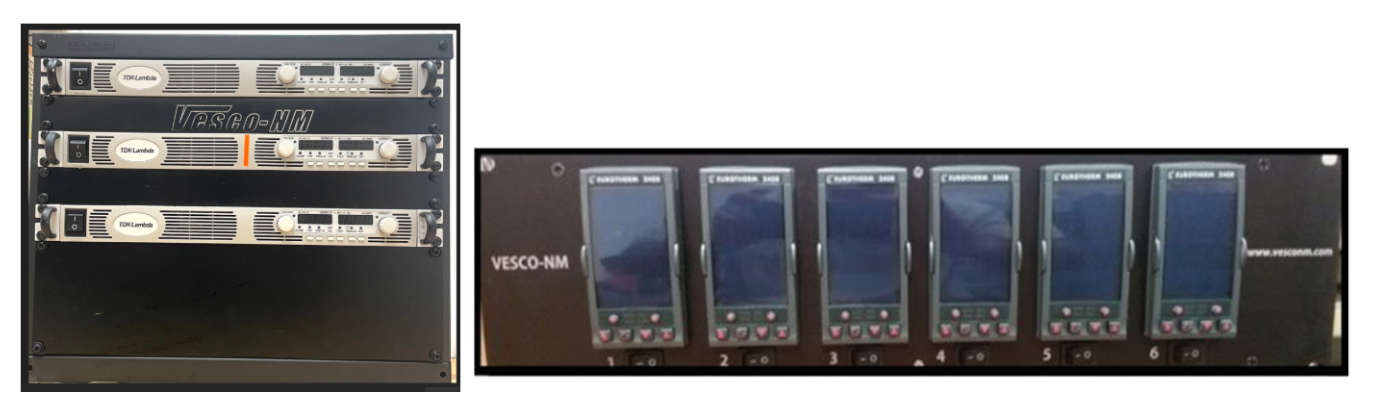

MBE Electronic Racks

A map of the united states with a red star in the middle

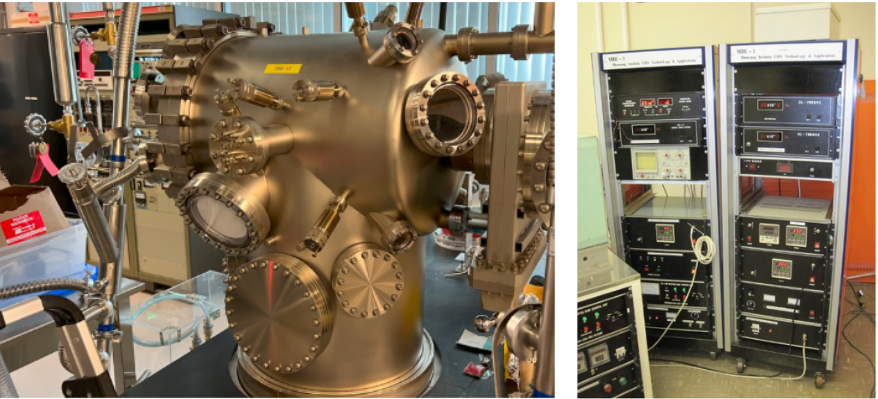

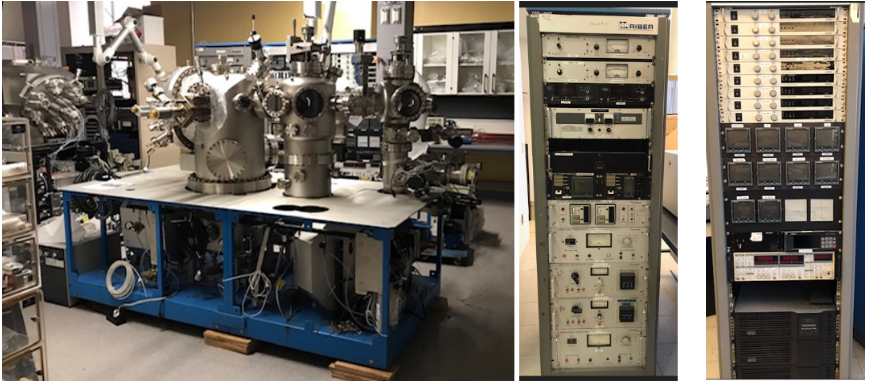

MBE power and control racks are designed and fabricated for various MBE electronic systems, including power supplies, temperature controllers, and other MBE electronics tools (RHEED, QMS, vacuum gauges controllers, etc.). Custom constructed employing unique cable and wire routing techniques to ensure the most efficient routing arrangement optimizing no tangling and most effective use of space.

Thermocouples

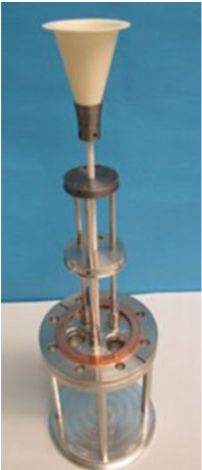

Thermocouples are designed for high reliability and longevity and are adapted for all effusion cells and crucible shapes and sizes. All types of thermocouples are available.

A map of the united states with a red star in the middle

Specifications:

  1. Electronic grade Tantalum basket-band type
  2. Double bore ceramic rod with Ta retaining spring
  3. Secure crucible setting
  4. High reliability and long-lifetime
  5. High temperature stability
  6. Compatibility with all effusion cells
  7. Easy to maintain
  8. Competitive prices

Crucibles

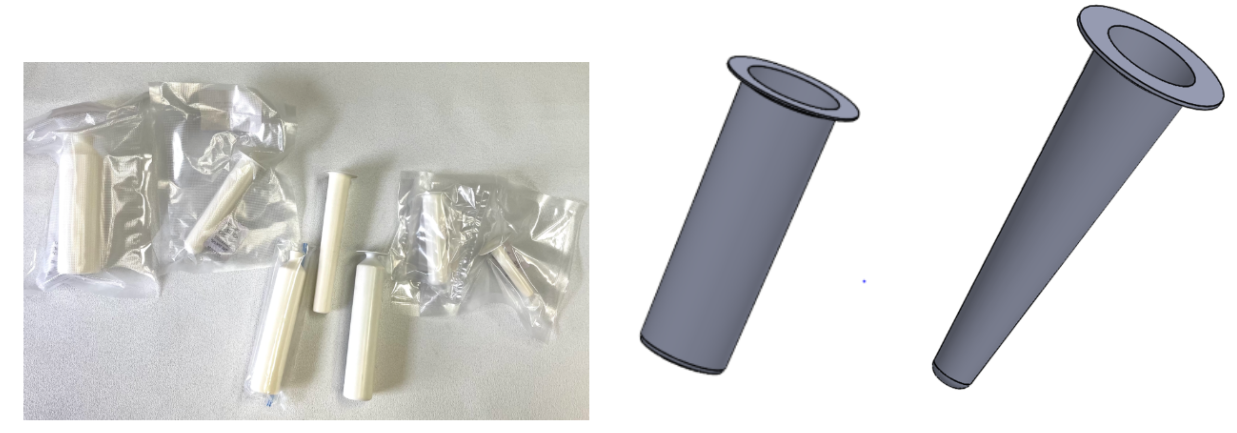

We design and fabricate all kinds of crucibles (PBN, Quartz, Graphite, and tantalum) with different shapes, and sizes to fit all applications. Or prices are competitive.

A map of the united states with a red star in the middle

MBE Accessories

We supply many MBE accessories that are needed to help MBE users to friendly keep MBE machines running and operational.

A map of the united states with a red star in the middle

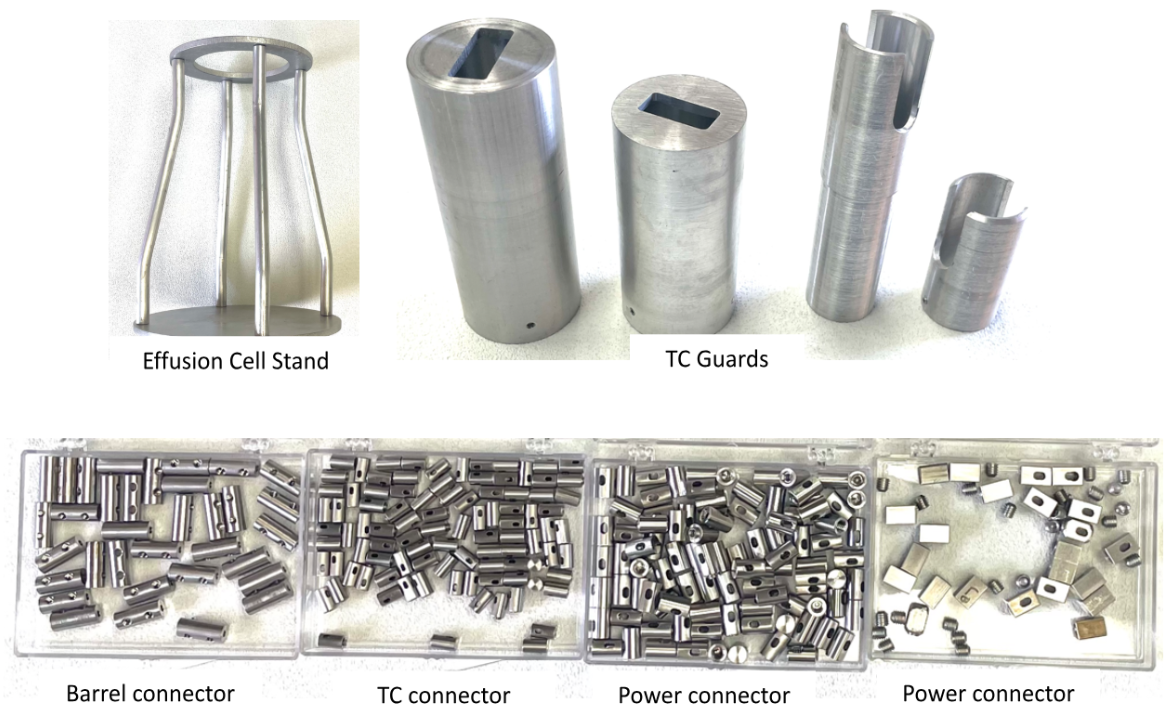

Effusion cell stands, thermocouple guards, and power connectors some of the many accessories to assist MBE growers in handling and maintaining MBE components.

MOCVD SUBSTRATE HEATERS

Reliable components from a trustworthy source

A map of the united states with a red star in the middle

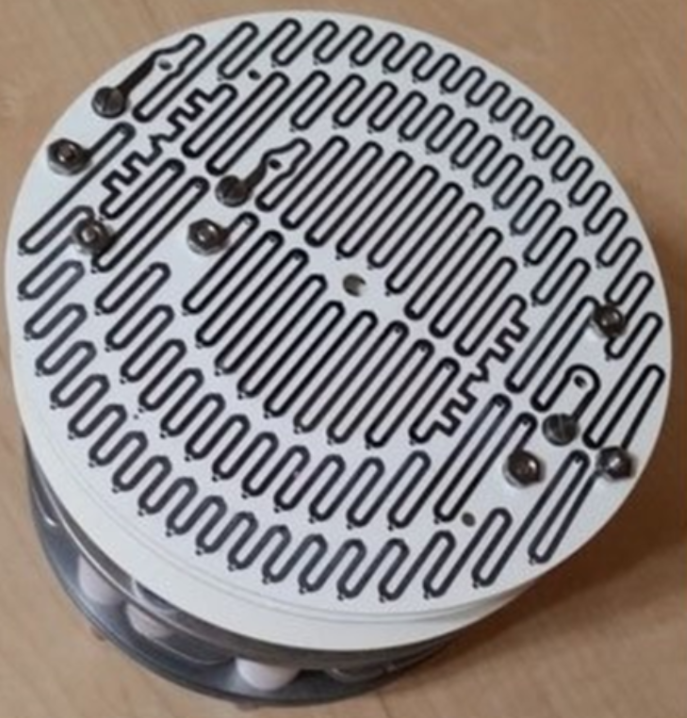

MOCVD substrate heater for nitride growth: meticulously built for optimum performance.

A map of the united states with a red star in the middle
A map of the united states with a red star in the middle
A map of the united states with a red star in the middle

EFFUSION CELL SERVICES

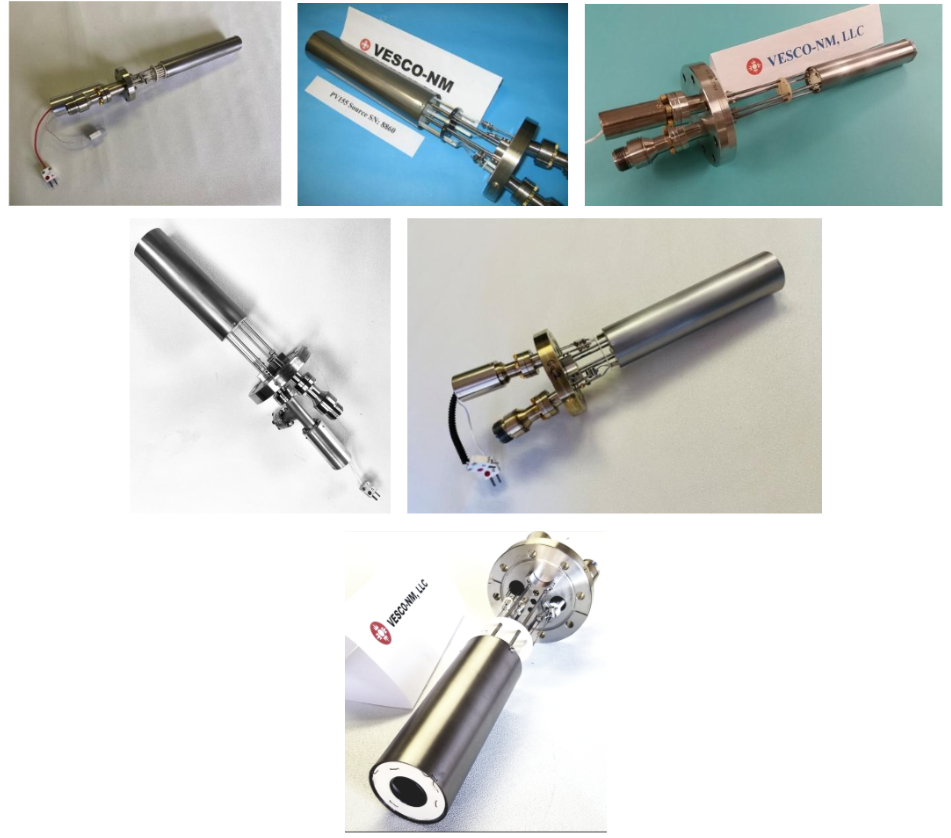

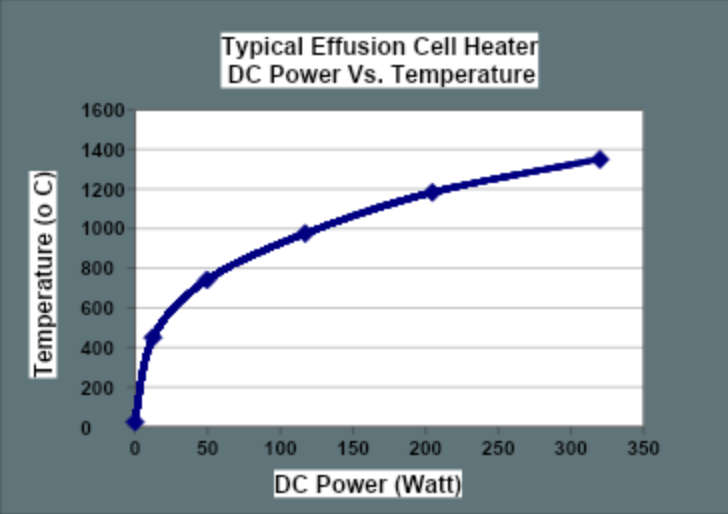

VESCO-NM services all other vendors’ effusion cells. In most repair cases we replace all parts of the effusion cells except the mounting flange. Our effusion cells heaters and thermocouples are well-known as the most reliable and robust heaters for all MBE harsh and low-vacuum (1E-2 torr) environments, including oxide and nitrides systems. Our seamless tantalum tubes are much stronger and never erode or crack due to gallium or aluminum penetration, the common failures appearance of the thin-wall outer tube cells. Our modified cells have longer life time and are easy to operate and maintained. We have repaired and modified over 500 effusion cells of other vendors with no return. Our lead time and after-service are satisfactory and our prices are very competitive.

A map of the united states with a red star in the middle
A map of the united states with a red star in the middle

Typical Specification of Repaired and Modified Effusion Cells

  1. 0.020” wall-thickness tantalum outer tube
  2. 0.040” OD tantalum wire heater
  3. Unique thermocouple construction
  4. PBN insulation disks
  5. Moly heater-assembly mounting disk (other on request)
  6. Base Reflector: PBN disk plus 6 knurled tantalum layers
